Type Power-D-Box CP
特徴

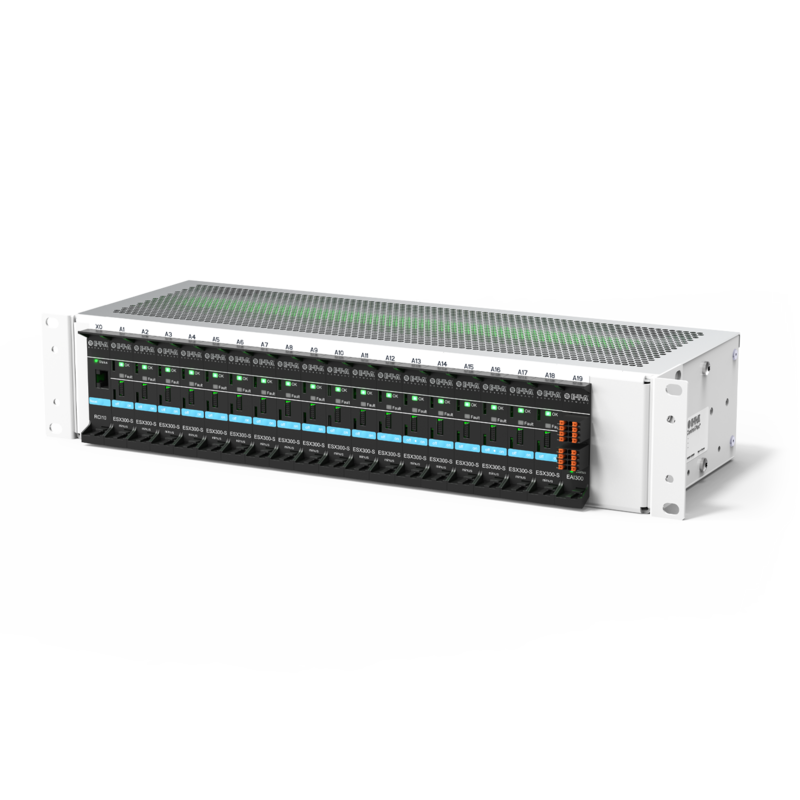

The CP Power-D-Box® is a modular power distribution system. Thanks to reversible mounting flanges, it can easily and quickly be installed in 19” or ETSI cabinets. The compact 2RU enclosure can accommodate the system components ESX300-S, RSI10, RCI11 or EAI300, depending on the application. User friendliness is of top priority in the event of a system extension with the system live without causing downtimes. All sub-assemblies are hot-swappable without affecting neighbouring components. Depending on the application, termination can be placed both on the front or on the rear.
Benefits:
- Easy mounting in 19” and ETSI system cabinets
- Plug-in circuit protectors allow easy system extension without system downtime
- Compact design, protected against brush contact (2RU)
- Redundant power supply ensures unrivalled system uptime
- Various preferred types with front side or rear side load outputs
- Optional accessories: cable grip rail, individual marking bands
技術データ
| 取付方法 | ラック |
|---|---|
| サーキットプロテクタタイプ | 電子式 |
| 寸法 |
19 インチ幅(482,6 mm) 幅 ETSI から (531,4 mm) 高さ 2U (88,9 mm) |
| 定格電圧 |
minus: DC - 38V to DC -72V |
| サーキットプロテクタ・ブレーカ型式 |
ESX300-S minus ESX300-S plus |
| 供給 |
冗長 冗長なし |
| 最大供給定格電流値 |
- 2 x 150 A with redundant design and line entry on the rear - 200 A with non-redundant design and double line entry on the rear - 100 A with non-redundant design and line entry on the front |
| 周囲温度範囲 | －20℃...＋60℃（結露なし） |
| より詳細なデータ | see data sheet |
用途
- インフラおよび信号技術
- オートメーションシステム
- 通信機器、データセンタ
